Construction Equipment Supplier

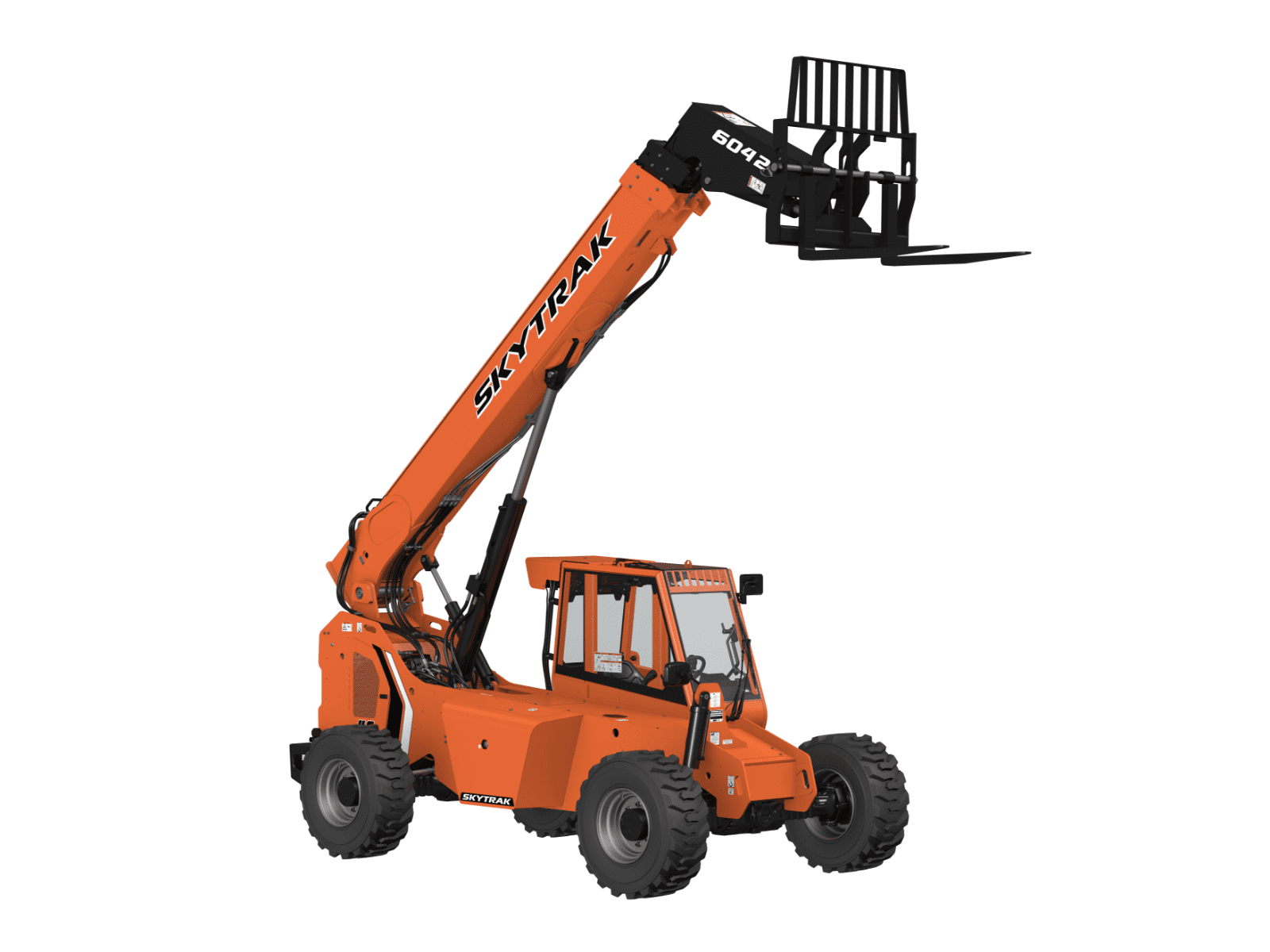

SkyTrak Telehandler 6042



JLG & Skytrak FinancingSkytrak JLG equipment sale

Key Specs

  • Maximum Lift Capacity: 6000 lb / 2721.55 kg
  • Maximum Lift Height: 41 ft 11 in. / 12.78 m
  • Maximum Reach: 27 ft 11 in. / 8.51 m

See all specs

Key Features

  • New, intuitive single joystick controls all boom functions
  • Maximize productivity with improved boom speeds
  • Redesigned cab includes new dashboard, integrated arm rest and optional air conditioning
  • Increased operator confidence with Stabil-Trak rear axle stabilization system when placing a load
  • 74 hp engine doesn’t require Diesel Exhaust Fluid (DEF) and meets Tier 4 Final regulations
  • Greater job site versatility—rear counterweight includes an integrated tow hitch

Performance

Drawbar Pull 22000 lb / 9979.03 kg
Frame Leveling 10 Degrees
Lift Capacity at Full Height 6000 lb / 2721.55 kg
Lift Capacity at Max Reach 1400 lb / 635.03 kg
Load Center 2 ft / 0.61 m
Maximum Lift Capacity 6000 lb / 2721.55 kg
Maximum Lift Height 41 ft 11 in. / 12.78 m
Maximum Reach 27 ft 11 in. / 8.51 m
Outriggers or Stabilizers No
Outside Turning Radius 14 ft / 4.27 m
Speed - Maximum Lift 14.3 sec.
Speed - Maximum Lower 10.5 sec.
Speed - Maximum Telescope In 17.2 sec.
Speed - Maximum Telescope Out 17 sec.
Speed - Maximum Travel 19 mph / 30.58 km/h

Dimensional Data

Ground Clearance 1 ft 3 in. / 0.38 m
Machine Height 8 ft 6 in. / 2.59 m
Machine Length 19 ft 6 in. / 5.94 m
Machine Width 8 ft 3 in. / 2.51 m
Tire Size 370/75-28
Wheelbase 9 ft 5 in. / 2.87 m

Power Source

Capacity - Fuel Tank 35 gal. / 132.49 L
Engine Horsepower 74 hp / 55.20 kW
Engine Horsepower Optional 85 hp / 63.41 kW
Engine Manufacturer Cummins
Engine Model QSF3.8L Tier 4 Final
Engine Model Optional QSF3.8L Tier 4 Final
Maximum Engine RPM 1400 rpm

General

Axle-Front High Bias, Limited Slip
Axle-Rear Oscillating
Operating Vehicle Weight 25100 lb / 11385.17 kg
Service Brake Type Wet Multi-Disc
Transmission - Nr Forward Gears Standard 4
Transmission - Nr Reverse Gears 3
Transmission Type Powershift
Contact our sales department online or at 1-877-355-5438 for current pricing and availability on new SkyTrak telehandlers.
