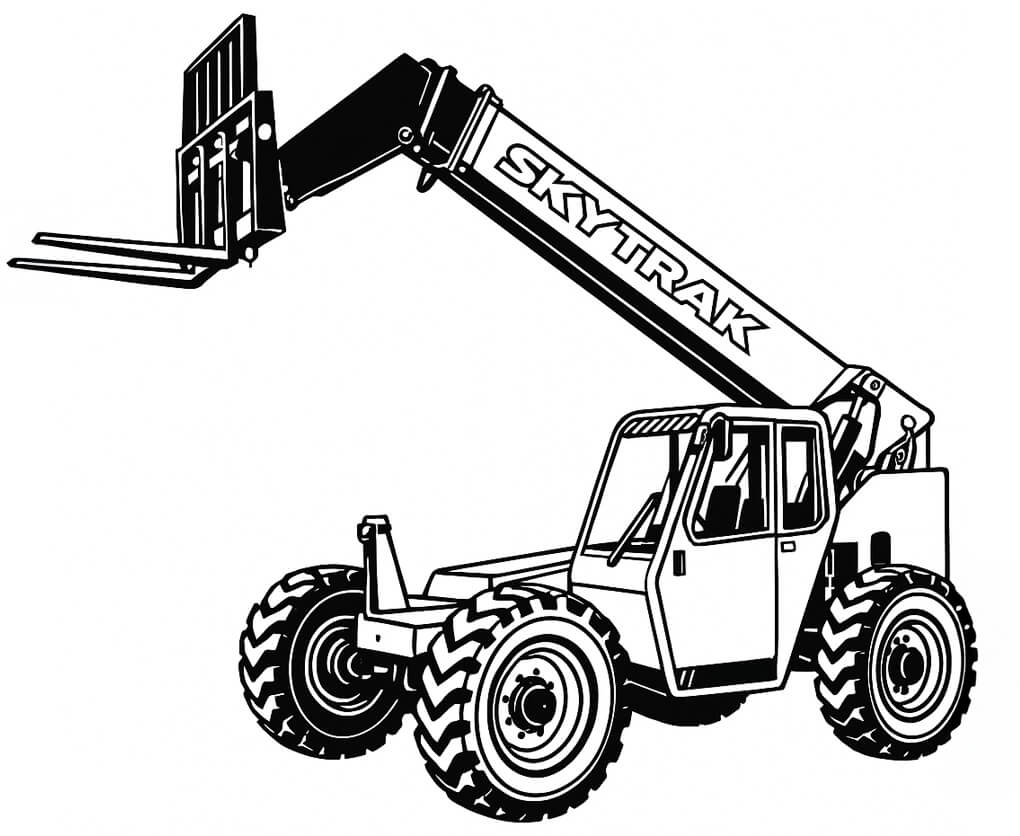

SkyTrak Models

Load ratings are in compliance with ANSI B56.6 STABILITY for rough terrain forklifts. Cab tested to ANSI B56.6 FOPS specifications.

Max Lift Capactiy:	5,000 lbs.
Lift Height:	27′ 8″
Max Reach from Front Tires to 24″ Load Center:	23′ 6″
Max Reach Below Grade:	24.25
Operating Weight:	14,500 lbs.
Hydraulic Reservoir Capacity:	20.7 gal
Fuel Tank Capacity:	24 gal.
Length less Forks:	207.5″
Width:	92.75″
Height:	92.5″
Wheelbase:	110″
Ground Clearance:	13.5″
Tread:	74.25″
Turning Clearance Radius:	13’10”
Max Reach @ Max	14’10”
Engine:	Cummins 4B3.9 diesel 80 hp @ 2800 rpm
Transmission:	Power shift/automatic, 3-speed forward 1 Speed reverse and park.
Axels & Brakes:	Full time planetary 4-wheel drive with enclosed wet disc brakes.
Boom:	Telescopic 2-stage welded box section construction using high strength allow steel. Replaceable high density wear pads to limit friction.
Standard Equipment:	TRAK®-Attach system Automatic load leveling system Frame leveling Load holding valves on frame level, attachment tilt, extend and lift cylinders Hydraulic oil cooler Oscillating rear axle, 2-wheel and crab steering Hydraulically actuated wet disc brakes Parking Brake FOPS operator cab Deluxe suspension seat with seat belt Joystick controls Horn and backup alarm Gauges and warning lights 12V electrical system Lockable doors, covers and toolbox Rear view mirrors
Options:	Auxiliary hydraulics Enclosed all weather cab Engine block heater Light package
