JLG TELEHANDLER 1644 HIGH CAPACITY SPECS & BROCHURE

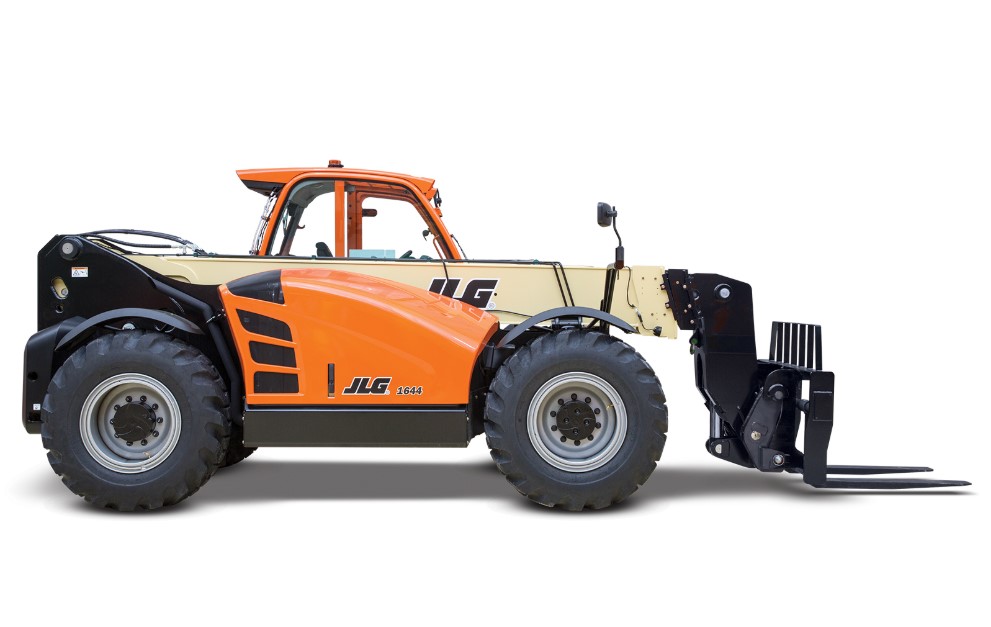

The JLG telehandler 1644 high capacity gets the job done with an impressive 15,650 lb. (7098.72 kg) lift capacity. Lifting to a maximum height of 43 ft 7 in and reaching 31 ft 1 in, the JLG 1644 high capacity uses SmartLoad technology for automatic attachment recognition.

Operators will enjoy the confidence of soft stop boom control, a precision gravity lowering system and an optional reverse camera and sensing systems.

buy a JLG 1644 high capacity telehandler

JLG telehandler 1644 high capacity specs

We'll help find & delivera Buy JLG Telehandler 1644 High Capacity to you

Need replacement parts for your Buy JLG Telehandler 1644 High Capacity?
Shop our replacement parts

Buy JLG Telehandler 1644 High Capacity key specs

Maximum Lift Capacity

15650 lb. / 7098.72 kg

Maximum Lift Height

43 ft 7 in / 13.28 m

Maximum Reach

31 ft 1 in / 9.47 m

Request an order

See all specs

Buy JLG Telehandler 1644 High CapacityKey Features

Operator comfort: spacious cab with enhanced visibility, 2-speed hydrostatic transmission & optional boom float & ride control
Operator confidence: precision gravity lowering system, soft stop boom control, optional reverse sensing system & reversing camera
Versatility: integrated tow hitch & a wide range of attachments for more options on the job site
SmartLoad technology: automatic attachment recognition

Drawbar Pull	23000 lb / 10432.62 kg
Frame Leveling	8 Degrees
Lift Capacity at Full Height	6750 lb / 3061.75 kg
Lift Capacity at Max Reach	2000 lb / 907.18 kg
Load Center	2 ft / 0.61 m
Maximum Lift Capacity	15650 lb / 7098.72 kg
Maximum Lift Height	43 ft 7 in. / 13.28 m
Maximum Reach	31 ft 1 in. / 9.47 m
Outriggers or Stabilizers	No
Outside Turning Radius	13 ft 2 in. / 4.01 m
Speed - Maximum Lift	18.3 sec.
Speed - Maximum Lower	13.6 sec.
Speed - Maximum Telescope In	12.3 sec.
Speed - Maximum Telescope Out	15.8 sec.
Speed - Maximum Travel	20 mph / 32.19 km/h

Ground Clearance	1 ft 7 in. / 0.48 m
Machine Height	8 ft 9 in. / 2.67 m
Machine Length	20 ft 3 in. / 6.17 m
Machine Width	8 ft 1 in. / 2.46 m
Tire Size	17.5-25 SGG
Wheelbase	10 ft 7 in. / 3.23 m

Capacity - Fuel Tank	39 gal. / 147.63 L
Engine Horsepower	134 hp / 99.96 kW
Engine Manufacturer	Deutz
Engine Model	TCD 3.6L Tier 4 Final
Maximum Engine RPM	2200 rpm

Axle-Front	High Bias, Limited Slip
Axle-Rear	Oscillating
Function Pump Type	Load Sensing Piston
Operating Vehicle Weight	33660 lb / 15267.92 kg
Service Brake Type	Wet Multi-Disc
Transmission Type	Hydrostatic
